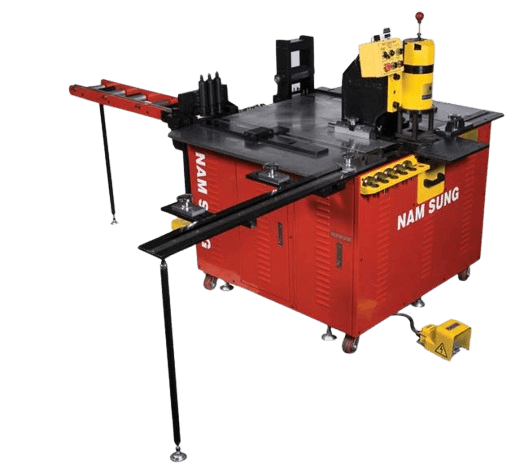

NSB-606A Busbar Fabrication System
Features
- Busbar can be punched, cutted & bended in one machine with high accuracy.
- Newly improved in 2010
- Equipped with Automatic Bending System.
| Specification | |
|---|---|
Size |
Width: 1350mm, Length: 1250mm, Height: 1420mm |
Power |
380V, 415V / 3 Phase |
Motor |
5HP / 50Hz, 60Hz / Single Motor (3 Motors Available) |
Busbar Cutting and Bending |
160mm × 15mm |
Busbar Punching |
3.4ϕ ~ 25ϕ |
1. Automatic Bending System
- This system bends the required angle by inputting the digits of thickness and required angle of busbar.
- It will automatically bend the busbar and return back to its original position without any additional operation.
2. Cutting System ( Shearing Type)
- This Shearing system do not make the wastage.
- Cut very rapidly and efficiency
- Cutting up to 160mm X 15mm.
3. Punching System
Using the Vertical Ruler Bar and Horizontal Ruler Bar, you could punch every place on the busbar very rapidly and accurately. This system reduces the punching time by 3 times faster than the existing model.
4. Useful Utilities
Sensor for Bending Angle Fixture. After the bending processing
you will be acquired all the same Angle degree.
Molds Shelf : You can safely keep the punches and Dies.
Convenient Stop Bar System
The end of stop bar could pop up to easily pull out the Busbar after cutting and bending.
