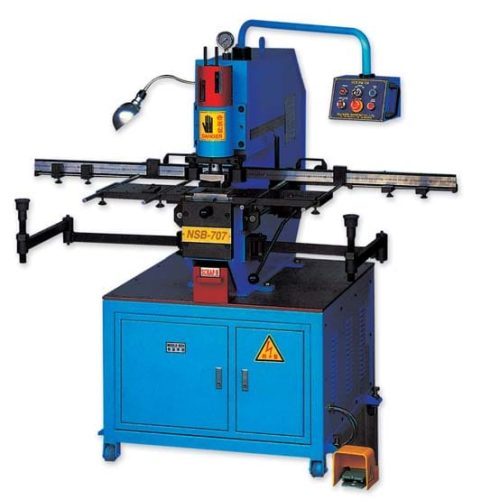

NSB-707 Panel Punching System
Home - NSB-707 Panel Punching System
Panel Punching System
Features
- This machine has been designed based on the safety-first policy and is suitable for panel manufacturing and other sheet metal works. By accurate and precise punching, operators are not required to grind or rework on the other side of the panel so that there will not be any burrs.
| Specification | |
|---|---|
Size |
Width : 1800mm, Length : 1000mm Height : 1650mm |
Motor |
5HP / 380, 415V/50hz, 60hz / 3-Phase. |
Steel Sheet |
Thickness 3.2mm Width 1040mm Length : 2400mm |
Punching |
6 ϕ ~ 110ϕ |

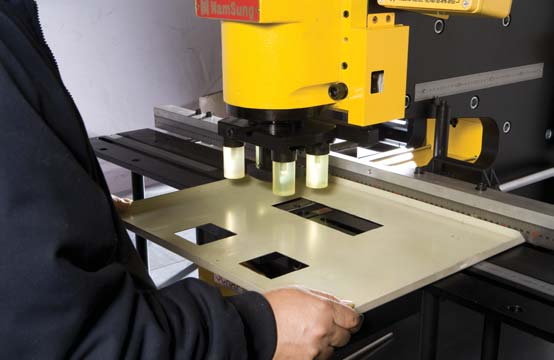

Panel Punching System
- By replacing panel punching mold with the cutting mold, you could punch on the panel sheet in various kinds of hole.
